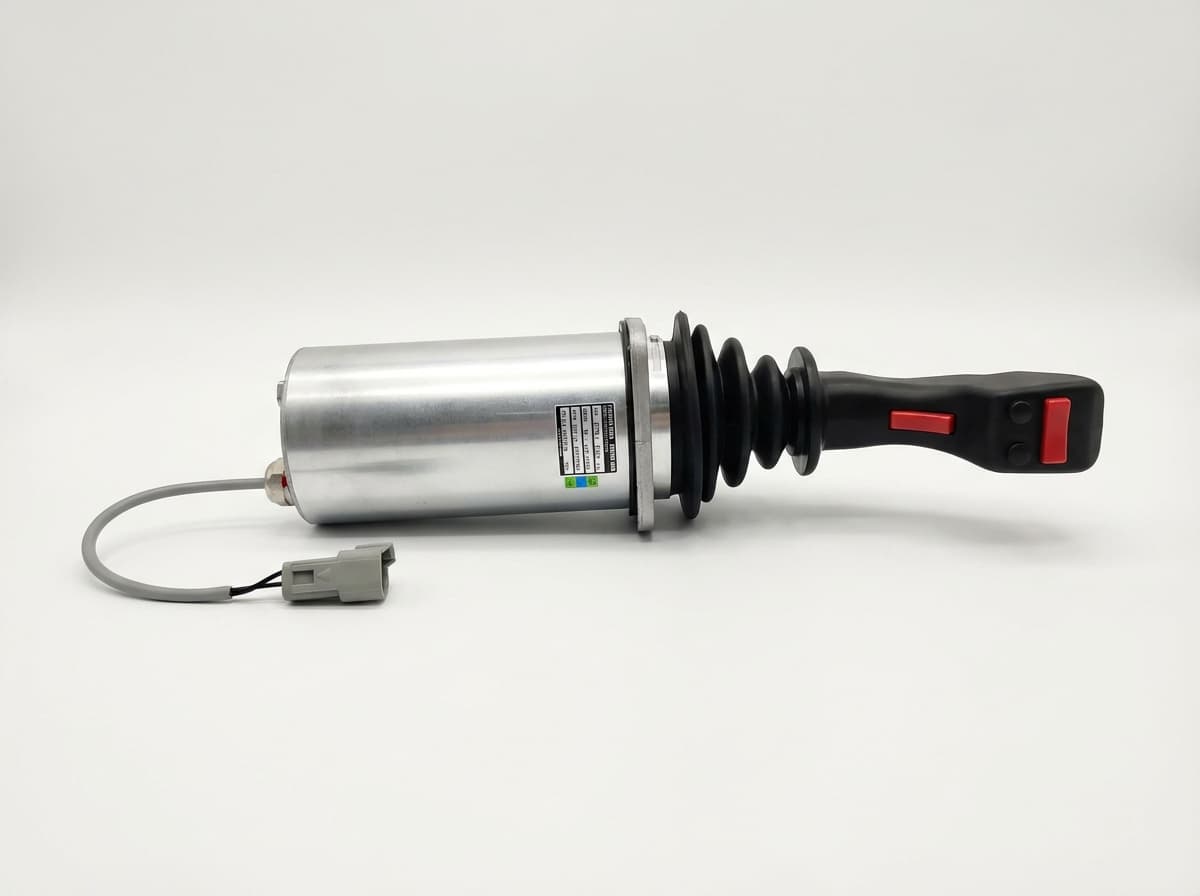

10001851 Liebherr Crane Joystick - Spohn & Burkhardt V8 / VNS0 - 4-Axis Hall Effect - LHM / LR Series

Liebherr Crane Joystick — Replaces 10001851 / 693166914

Why pay $4,000 for a Liebherr-branded joystick when you can get the exact same German-made controller for half the price? This is a Spohn & Burkhardt VNS0 / V8 series heavy-duty joystick — the same controller that Liebherr installs in the LHM and LR crane series. Replaces Liebherr part numbers 10001851 and 693166914. Manufactured in Germany by Spohn & Burkhardt — the world's leading maker of precision industrial controllers.

The Problem

Your crane joystick is drifting, intermittent, or completely dead. On a harbor mobile crane or crawler crane, a failed joystick isn't just an inconvenience — it's a massive safety hazard. When the master switch drifts, loads drift. Liebherr quotes $2,500–$4,200 for the replacement and their lead time can stretch to weeks. Your crane sits idle, costing you thousands per day in lost lifts.

The Solution

Liebherr doesn't manufacture their joysticks. They buy them from Spohn & Burkhardt (S+B), the German specialist in heavy-duty industrial controllers. We source the identical S+B VNS0 / V8 series controller from authorized industrial distributors — same manufacturer, same factory, same quality, same part — just without the Liebherr markup. You're getting the genuine article, the Rolls-Royce of industrial joysticks, at a fair price.

Specifications

• Liebherr OEM Part Number: 10001851 / 693166914
• Manufacturer: Spohn & Burkhardt (Germany)
• Series: VNS0 / V8 Heavy Duty
• Axes: 4-Axis Control
• Sensor Type: Hall Effect (non-contact, zero mechanical wear)
• Handle: Deadman Handle (spring-return safety feature)
• Construction: Cast aluminum base, industrial-grade potted electronics
• Rating: IP65 sealed for outdoor/marine environments
• Made In: Germany
• Condition: Brand New

Identification

• Visual ID: Look for the "S+B" logo on the circuit board or base casting
• Handle: Deadman-style grip with spring return to center
• Connector: Multi-pin industrial connector (match to your existing harness)
• Location: Operator cab — primary hoist/slew control position

Compatible Equipment

The 10001851 / 693166914 joystick fits the following Liebherr crane platforms:

Liebherr LHM Series (Harbor Mobile Cranes)

• Liebherr LHM 180
• Liebherr LHM 280
• Liebherr LHM 420
• Liebherr LHM 550
• Liebherr LHM 600
• Liebherr LHM 800

Liebherr LR Series (Crawler Cranes)

• Liebherr LR 1100
• Liebherr LR 1130
• Liebherr LR 1160
• Liebherr LR 1250
• Liebherr LR 1300

Liebherr LTM Series (Mobile Cranes)

• Liebherr LTM 1100 (select configurations)
• Liebherr LTM 1130 (select configurations)
• Liebherr LTM 1200 (select configurations)

Other Liebherr Equipment

• Liebherr STS (Ship-to-Shore) Container Cranes
• Liebherr RTG (Rubber-Tired Gantry) Cranes
• Liebherr Offshore Cranes (select models)

Spohn & Burkhardt VNS0/V8 joysticks are configured per application. Verify your existing joystick configuration (axis count, connector type, and switch options) against your parts manual before ordering. If your Liebherr parts book references 10001851 or 693166914, this is the correct controller family. Contact us with your crane model and serial number for exact confirmation.

Why Buy From Trenchwell?

• Save $1,000–$2,300: Liebherr charges $2,500–$4,200 for a controller they source from Spohn & Burkhardt. We offer the identical S+B controller at $1,895 — same German engineering, same factory, no middleman markup.
• Genuine Spohn & Burkhardt: This is NOT a Chinese clone. This is the real S+B VNS0/V8 series — the same joystick installed at the Liebherr factory. Hall-effect sensors, deadman handle, IP65 sealed, German-made. Look for the S+B logo on the casting.
• Safety Critical: A drifting joystick on a harbor crane is a disaster waiting to happen. Don't gamble with a cheap imitation on a safety-critical control. This is the genuine article from the world's most trusted industrial controller manufacturer.
• Expert Support: Spohn & Burkhardt controllers are configurable. Contact us with your crane model and serial number — we'll confirm the exact configuration, axis count, and connector type before you order.
• Fast Shipping: In stock and ready to ship. A crane sitting idle at a port costs tens of thousands per day in lost throughput. We get it out the door fast.

About the Manufacturer

Spohn & Burkhardt has manufactured industrial joystick controllers in Germany since 1935. Their V-Series and VNS0 controllers are the global standard for cranes, mining equipment, port machinery, and offshore platforms. When Liebherr, Konecranes, Terex, and other OEMs need the most reliable joystick on the planet, they specify S+B. This is that controller.

Installation Notes

• Power down the crane and lock out/tag out per site safety procedures
• Photograph the existing joystick wiring and connector orientation before removal
• Note any DIP switch settings or configuration jumpers on the old controller — replicate on the new unit
• Remove the mounting bolts and disconnect the multi-pin connector
• Install the new S+B controller in the same position and orientation
• Reconnect the connector — verify pin alignment and positive engagement
• Secure all mounting hardware to spec
• Power on and perform a full functional test of ALL axes with NO LOAD before resuming operations
• Verify deadman handle function — releasing the grip must immediately stop all crane motion
• Calibrate if required per your Liebherr service manual procedures

Frequently Asked Questions

Is this really the same joystick Liebherr sells for $4,000?
Yes. Liebherr does not manufacture joystick controllers. They purchase them from Spohn & Burkhardt, one of the world's oldest and most respected industrial controller manufacturers, based in Germany. Liebherr applies their own part number (10001851) and their own markup. We source the identical S+B controller through authorized industrial distributors. Same factory, same product, same quality — without the OEM crane manufacturer's premium.

Why is this so expensive compared to an excavator joystick?
Because it's an entirely different class of controller. An excavator joystick is a $50 commodity component. A Spohn & Burkhardt VNS0/V8 is a precision, multi-axis, hall-effect controller engineered for safety-critical lifting operations. It's IP65 sealed, rated for millions of operations, and features a deadman handle that must meet stringent safety certifications. This is the Rolls-Royce of industrial controllers — and it's priced accordingly, even at our discounted rate.

How do I confirm the correct configuration for my crane?
Contact us with your Liebherr crane model, serial number, and the part number from your existing joystick (10001851 or 693166914). S+B controllers are available in multiple configurations (axis count, switch options, connector type). We'll match your exact configuration before shipping to ensure a direct drop-in replacement.

Is it safe to use a non-Liebherr-branded joystick?
This IS the same joystick — just without the Liebherr label. Spohn & Burkhardt's quality certifications, testing standards, and manufacturing processes are the same regardless of which OEM orders from them. The S+B logo is on the casting and circuit board. You are getting the genuine manufacturer's product, not a third-party imitation.
