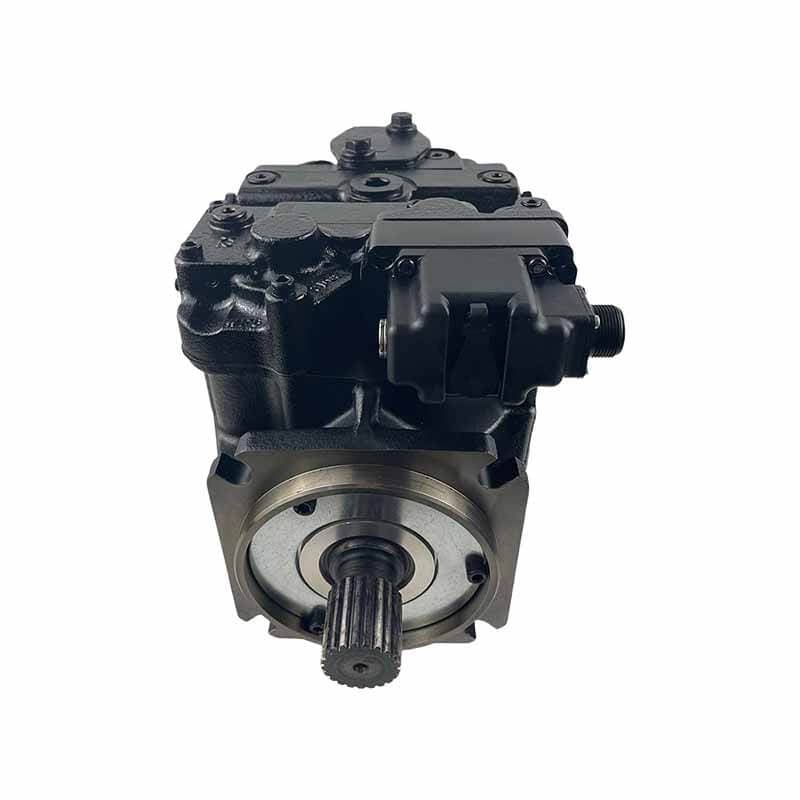

Volvo Excavator Main Hydraulic Pump - Replaces 14531853 / VOE14531853 - Variable Displacement Axial Piston Pump - EC135 Series

Main Hydraulic Pump — Volvo EC135 Excavator | Replaces 14531853 / VOE14531853

Your excavator has lost digging power, the arm is sluggish, or the machine won't track at full speed. A failed main hydraulic pump on a Volvo excavator isn't a slow decline — it's a rapid deterioration that takes everything with it. Metal particles from a failing pump contaminate the entire hydraulic circuit — valves, cylinders, motors — and turn a $2,695 pump job into a $15,000+ system rebuild if left too long. The moment you see loss of power, slow cycle times, or excessive heat in the hydraulic system, stop the machine and replace the pump.

This is a direct replacement for Volvo part number 14531853 (also listed as VOE14531853) — the primary variable displacement hydraulic pump for the Volvo EC135 series excavators. OEM-specification variable displacement axial piston architecture, engineered for the high-pressure, closed-circuit hydraulic demands of a production excavator.

What "Variable Displacement" Means — Why It Matters

Not all hydraulic pumps are the same. A variable displacement pump is the most sophisticated pump architecture in heavy equipment:

• Matches output to demand: Under light loads (boom floating, slow swing), the pump reduces displacement to save fuel and reduce heat. Under full digging load, it automatically increases displacement to maintain pressure and flow.
• Pressure-compensated: The pump regulates its own output to maintain system pressure without the engine loading up unnecessarily. This is why Volvo excavators are fuel-efficient while still delivering high digging force.
• Closed-circuit architecture: The pump works in a closed-loop hydraulic system — the output feeds directly into the hydraulic motors and cylinders, and the return comes directly back. This design is more efficient and generates less heat than open-circuit systems.

A fixed-displacement replacement will not work correctly in this application. Variable displacement is mandatory.

Specifications

• Volvo OEM Part Number: 14531853, VOE14531853
• Type: Variable Displacement Axial Piston Pump
• Architecture: Sauer Danfoss Series 90, 75cc displacement
• Rotation: Right-Hand (Clockwise) — matches Volvo EC135 PTO
• Application: Main hydraulic circuit (digging, boom, arm, swing, travel)
• Condition: Brand New
• Warranty: 1 Year

⚠️ Critical: Flush Before Installation

If your original pump failed internally (bearing failure, piston seizure, swashplate wear), metal debris has contaminated your hydraulic system. Installing a new pump into a contaminated system will destroy the replacement pump within hours. This is non-negotiable:

• Drain and flush the hydraulic reservoir completely — remove the tank, clean internally, and refill with fresh fluid
• Replace all hydraulic filters — pressure filter, return filter, and case drain filter
• Inspect the hydraulic cooler — debris collects here and will recirculate
• Flush the main circuit lines before connecting to the new pump
• Operate slowly for the first 30 minutes after startup, monitoring for heat, pressure irregularities, or unusual noise

Failing to flush after a pump failure is the single most common cause of premature replacement pump failure. Do not skip this step.

Compatible Equipment

• Volvo EC135 Excavator Series (primary fitment)
• Additional Volvo excavator models specifying 14531853 / VOE14531853

⚠️ Verify your exact machine model and serial number before ordering. Volvo hydraulic pump specifications can vary by serial number range and market region. Contact us with your machine serial number and the casting number visible on your existing pump for exact confirmation.

Installation Tips

• Depressurize the hydraulic system fully before disconnecting any lines
• Label all hydraulic connections before removal — inlet, outlet, case drain, control signal lines
• Cap all open ports immediately to prevent contamination during the swap
• Compare port locations on the new pump to your existing unit before installation
• Pre-fill the case drain port with clean hydraulic fluid before startup — running dry even briefly will damage the internal bearings
• Crack open the case drain line and allow it to fill before starting the engine
• Start at low RPM and monitor pressure and flow before going to full operation
• Recheck all connections for leaks after the first operating hour

Frequently Asked Questions

What causes a main hydraulic pump to fail on an excavator?
The most common causes are: contaminated hydraulic fluid (debris, water intrusion), low fluid level causing cavitation, extended service intervals without filter changes, and high-hour wear on internal rotating components (pistons, swashplate, barrel). Regular fluid and filter service dramatically extends pump life.

How do I know the pump is the problem vs. a valve or cylinder?
Symptoms pointing specifically to the pump: low system pressure across all functions simultaneously, excessive pump noise (cavitation whine, knocking), high hydraulic fluid temperature system-wide, and visible contamination in the fluid. If only one function is slow or weak, the problem is likely downstream of the pump (a specific valve, cylinder, or motor).

Can I rebuild my old pump instead of replacing it?
A rebuild is theoretically possible but requires a clean room, specialized tools, and precise measurement of internal clearances. For a machine-critical component operating at 5,000+ PSI, a new pump at this price point is almost always more economical and reliable than a field rebuild. A rebuild kit for a pump of this class costs $300–$600 and still requires expert assembly — the labor and risk often exceed the price difference.

Why is the Volvo dealer so much more expensive?
Volvo Construction Equipment does not manufacture their own hydraulic pumps. This pump is manufactured by Sauer Danfoss (now Danfoss Power Solutions) and rebranded with the Volvo part number. The dealer margin on hydraulic components is significant. An aftermarket pump built to the same Sauer Danfoss specification performs identically at a fraction of the dealer price.
