2457749 A/C Condenser Core for Caterpillar

Replace a damaged condenser core on equipment calling for Caterpillar 245-7749. This aluminum parallel-flow replacement rejects heat from the cab refrigerant circuit and includes the mounting-tab configuration shown.

New third-party replacement for the referenced Caterpillar part; not sold as a genuine Caterpillar-branded part.

Specifications

• Aluminum parallel-flow condenser core
• Supplier nominal core dimensions: 14.5 x 22.25 x 0.63 inches
• Pad-style inlet and outlet connections
• Single-hole mounting tabs on the end tanks
• R134a application; seals, hoses and receiver/drier not included

Compatibility

Reference applications include Cat 320D and 323D excavators equipped with 245-7749. Confirm the removed core reference, overall assembly dimensions, hose fittings and mounting centers. Listed core measurements are not the overall bracket-to-bracket assembly envelope.

Ordering and Images

Supplier-fulfilled item. Availability and dispatch timing are confirmed before shipment. Ground shipping shown is an estimate; remote and non-contiguous destinations may require a separate quote.

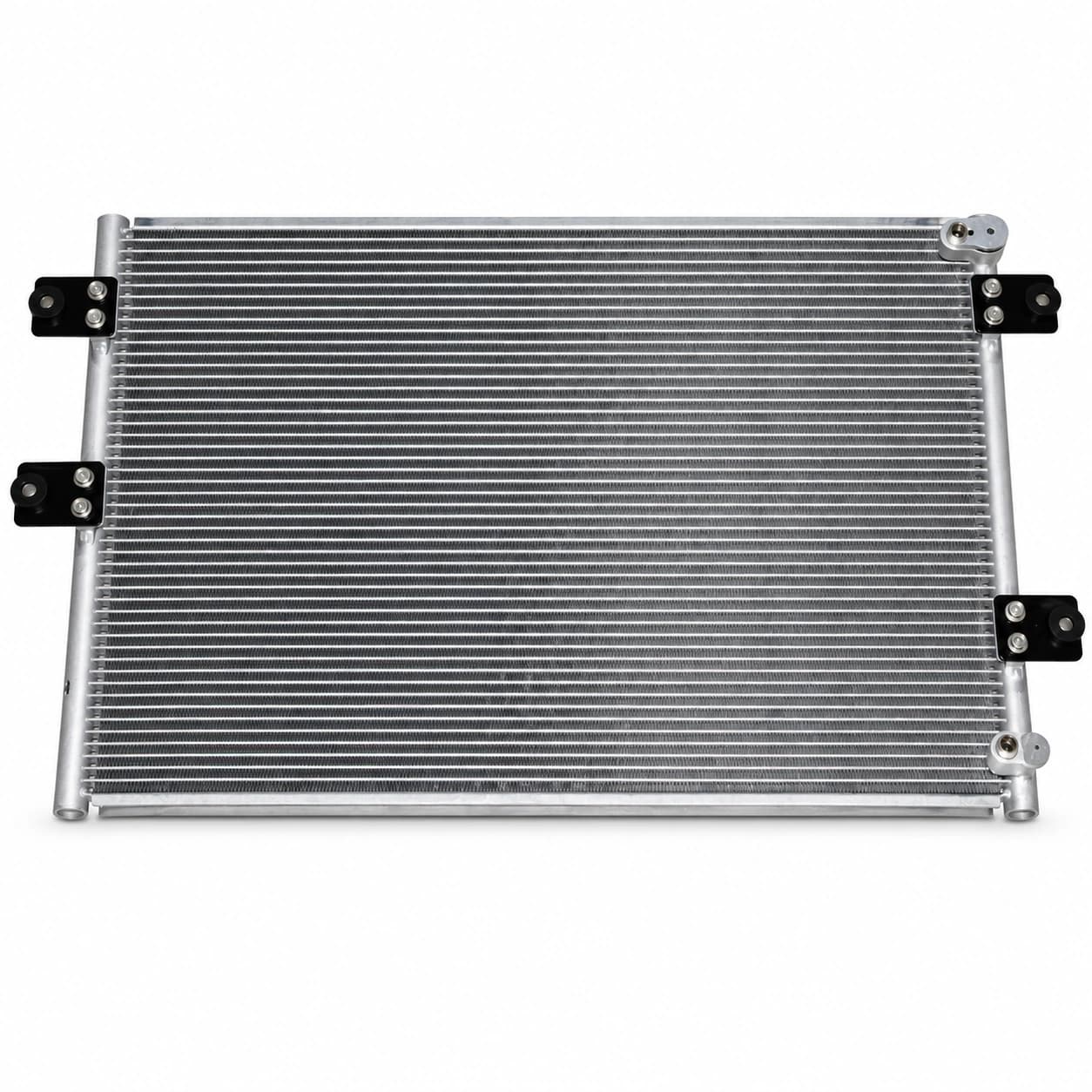

AI-enhanced supplier reference image, not a photograph of Trenchwell warehouse inventory. Finish, wire color and nonfunctional labels may vary by production revision. Use the listed specifications and part reference to confirm fitment.
