Your Takeuchi track loader's hydraulic system runs on clean oil. The return filter catches contamination — metal particles, seal debris, and system wear products — before they recirculate through the pump, valves, and cylinders. A clogged or bypassing return filter means unfiltered oil is circulating through your entire hydraulic system, accelerating wear on every component. The pilot system is especially vulnerable — the fine-tolerance pilot valves that control your joysticks and travel motors can be destroyed by particles a return filter should have caught.

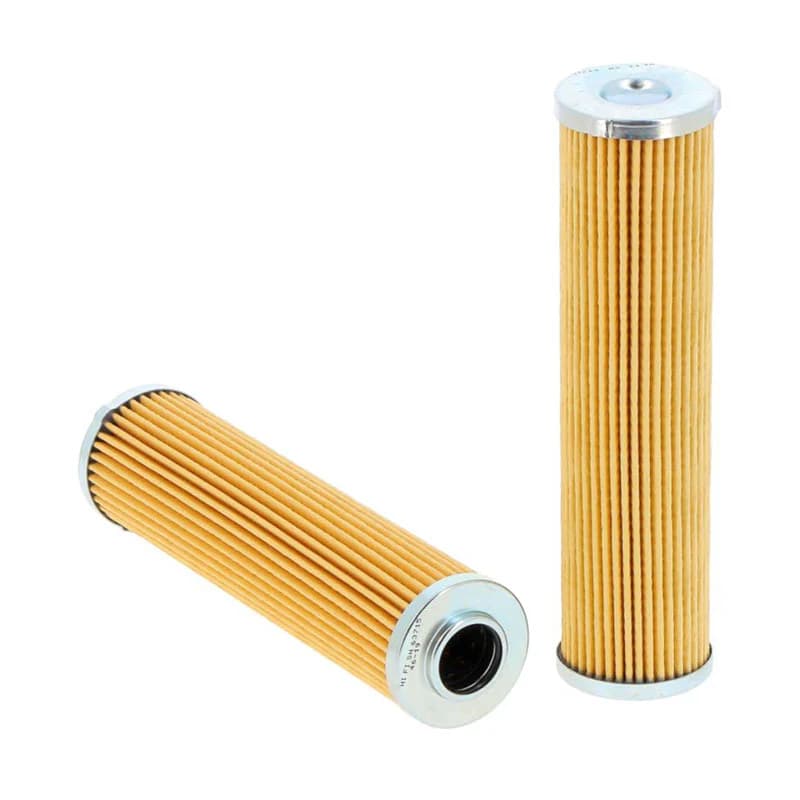

The competition charges $72+ for this filter. We sell the direct replacement for $58.00 — saving you over $14. This is the same specification hydraulic return element: 10 micron glass media, 8-7/32" length, 2" OD, cartridge-style. It drops directly into the return filter housing on your Takeuchi with no modifications. Replaces Takeuchi part number 1551101001.
The Takeuchi 1551101001 is a cartridge-style element that slides into a filter housing. It is NOT a threaded spin-on canister. If you are looking at spin-on filters with a similar part number, those are the wrong filter. This element is 2 inches in diameter and 8-7/32" long — a slim cartridge, not a fat spin-on can. Verify your filter housing accepts a cartridge element before ordering.
Hydraulic return filters have a finite service life. As they capture contamination, the filter media becomes loaded and flow restriction increases. Eventually the bypass valve opens and unfiltered oil flows directly back to the tank — your hydraulic system is now running on dirty oil. On a track loader running hard in dirt, mud, and dust, hydraulic contamination is the #1 cause of premature component failure:
A $58 filter protects thousands of dollars in hydraulic components. Skipping filter changes or running past the service interval is the most expensive "savings" in heavy equipment.
This is the same specification hydraulic return filter element used in Takeuchi track loaders. 10 micron glass media provides high-efficiency filtration that catches particles small enough to damage pilot valves and pump surfaces. The cartridge slides directly into the return filter housing — remove the housing cover, pull out the old element, drop in the new one, reinstall the cover. Five minutes of wrench time that protects your entire hydraulic system.
The 1551101001 hydraulic return filter fits the following Takeuchi compact track loaders:
⚠️ Verify Takeuchi part number 1551101001 in your operator's manual or service manual before ordering. Some Takeuchi models underwent mid-production changes that altered filter specifications. Contact us with your machine model and serial number if you're unsure.
Is this a spin-on filter or a cartridge element?
This is a cartridge element — it slides into a filter housing. It is NOT a spin-on filter with threads. The element is 2" in diameter and about 8-1/4" long. If your machine uses a threaded spin-on hydraulic filter, this is not the correct part.
Can I reuse or clean this filter?
No. Hydraulic filter elements are not cleanable or reusable. The glass media captures particles within the filter material itself — blowing it out with compressed air or washing it does not remove embedded contamination. Always install a new element at each service interval.
How do I know when the filter needs changing?
Follow the service intervals in your operator's manual (typically 500 hours). If your machine has a filter bypass indicator, a lit indicator means the filter is clogged and oil is bypassing — change it immediately. If hydraulic performance feels reduced, the oil temperature is elevated, or the oil looks contaminated, change the filter regardless of hours.
Do I need to change the hydraulic oil when I change this filter?
Not necessarily at every filter change, but hydraulic oil should be sampled or changed at the intervals specified in your service manual (typically 1,000–2,000 hours). If the oil looks dark, smells burnt, or contains visible particles, change the oil AND the filter together. Always top off the hydraulic tank after a filter change — the new element displaces less oil than the saturated old one.
