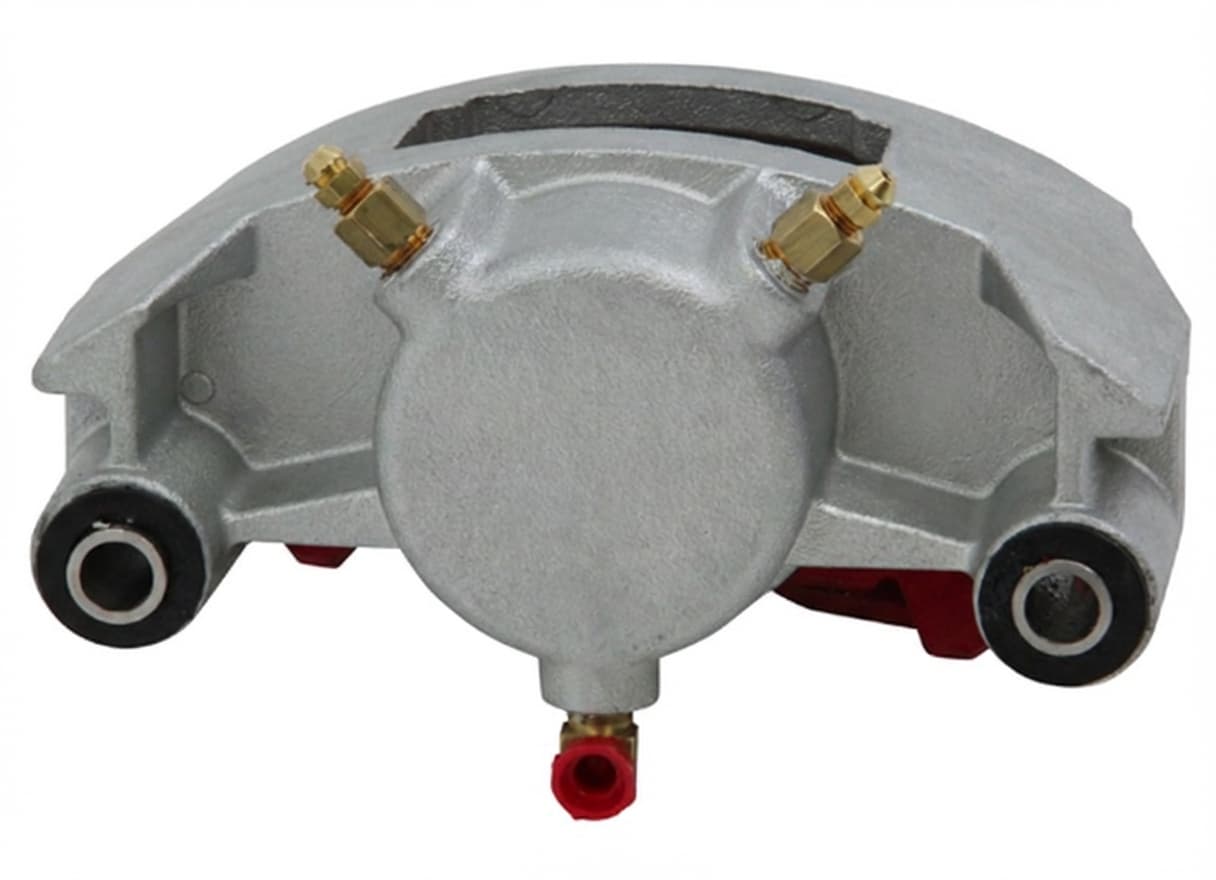

203554 Broce / Superior Broom Front Brake Caliper - Dacromet Corrosion Resistant - 2-1/4" Piston - Loaded with Ceramic Pads

203554 Front Disc Brake Caliper for Broce & Superior Street Brooms

Your front brake caliper is seized, leaking, or the piston is frozen from corrosion. Street brooms live in the worst environment for brakes — constant water, road grit, salt, and debris hammering the front calipers every time the broom is sweeping. Standard automotive calipers corrode and seize within a season or two. The dealer wants $245–$353 for a replacement caliper. That's a serious markup on a standard industrial disc brake.

We sell the direct replacement caliper for $189 — the Dacromet-coated, corrosion-resistant version designed specifically for wet, harsh environments. Comes loaded with ceramic brake pads — ready to bolt on. Replaces Broce part number 203554 and Superior part number 01-14100-130.

Why Dacromet Coating Matters on a Broom

Street brooms operate in standing water, wet slurry, road salt brine, and abrasive road grit — all day, every day. This is one of the most corrosive environments any brake caliper can face. Standard automotive calipers use E-Coat or raw cast iron finishes that corrode quickly in these conditions. Dacromet coating provides a completely different level of protection:

• Salt-Spray Rated: Dacromet is a multi-layer zinc/aluminum flake coating that provides up to 1,000+ hours of salt spray resistance — far beyond standard E-Coat or paint
• No Red Rust: The distinctive silver finish of Dacromet doesn't develop the red rust that seizes pistons and freezes slide pins
• Outlasts Standard Calipers 3–5x: In wet sweeping conditions, a Dacromet caliper will last multiple seasons where a standard automotive caliper may seize within one

Do NOT buy an E-Coat or raw finish caliper for a broom. It will corrode and seize. The Dacromet coating is not optional — it's the reason this caliper survives.

Large 2-1/4" Piston — More Stopping Power

Generic replacement calipers often use a smaller 2" piston to cut costs. This caliper uses the correct 2-1/4" (2.25") stainless steel piston, providing significantly more clamping force on the rotor. On a machine that weighs 3,500–6,000 lbs and operates on wet roads, braking power is not the place to cut corners.

Comes Loaded with Ceramic Pads

This caliper ships loaded — the high-performance ceramic brake pads are already installed and ready to go. No separate pad purchase needed. Ceramic pads provide:

• Consistent braking performance when wet (critical for brooms that operate in water)
• Lower dust generation than semi-metallic pads
• Reduced rotor wear for longer rotor life
• Quieter operation — less brake squeal

Specifications

• Broce OEM Part Number: 203554
• Superior OEM Part Number: 01-14100-130
• Type: Front Disc Brake Caliper — Loaded (with pads)
• Piston: 2-1/4" (2.25") Stainless Steel
• Coating: Dacromet (Salt-Spray / Corrosion Resistant)
• Pads: Ceramic — Pre-Installed
• Axle Rating: Fits 3,500 lb – 6,000 lb Axles
• Rotor Compatibility: 10" or 12" Slip-On Rotors
• Condition: Brand New, Loaded

Compatible Equipment

The 203554 / 01-14100-130 front brake caliper fits the following:

Broce Broom

• Broce 350 Series
• Broce RC300
• Broce RJ350

Superior Broom

• Superior DT74
• Superior DT80
• Superior SM80

⚠️ Verify your OEM part number (203554 or 01-14100-130) in your parts manual before ordering. Some older broom models may use a different caliper mounting bracket or rotor size. Contact us with your machine model, serial number, and rotor diameter to confirm fitment.

Installation Notes

• Chock the rear wheels and secure the machine on a flat, level surface
• Raise the front of the machine and support on jack stands
• Remove the front wheel
• Disconnect the brake line from the old caliper — have drain pan ready for brake fluid
• Remove the caliper mounting bolts (typically 2 bolts or slide pins)
• Remove the old caliper
• Inspect the rotor — check for scoring, warping, or minimum thickness. Resurface or replace if needed
• Mount the new caliper — the ceramic pads are already installed
• Install and torque the mounting bolts to spec
• Connect the brake line — use new copper crush washers if applicable
• Bleed the brake system — start at the wheel furthest from the master cylinder and work toward it
• Check brake fluid level in the master cylinder — top off with DOT 3 or DOT 4 as specified
• Pump the brake pedal until firm — do NOT drive the machine until the pedal is solid
• Reinstall the wheel and lower the machine
• Test: drive slowly and apply the brakes — verify straight, even stopping
• Bed in the new pads: make 6–10 moderate stops from 30 mph, allowing 30 seconds between stops for cooling

Symptoms of a Failing Caliper

• Machine pulls to one side under braking (caliper seized or sticking)
• Brake fluid leaking at the caliper piston or banjo fitting
• Caliper piston is frozen — won't retract or extend
• Visible heavy rust or corrosion on the caliper body (E-Coat or paint failure)
• Brake pedal feels spongy or goes to the floor (piston seal failure)
• Grinding noise from the front wheel (pad worn through — metal on metal)
• One front wheel is significantly hotter than the other after driving (dragging caliper)
• Excessive brake dust on one front wheel but not the other
• Pads wearing unevenly — one side thinner than the other (slide pins seized)

Frequently Asked Questions

What's the difference between Dacromet and E-Coat?
E-Coat (Electrophoretic Coating) is a thin paint-like coating applied electrically. It provides basic corrosion protection for dry environments but breaks down quickly in sustained wet or salt exposure. Dacromet is a multi-layer zinc/aluminum flake coating baked onto the surface, providing dramatically superior corrosion resistance — 5–10x longer protection than E-Coat in salt spray testing. For a broom that operates in water and salt all day, Dacromet is the only coating that makes sense.

Can I use a standard automotive caliper instead?
You can, but it will corrode and seize much faster. Standard automotive calipers are E-Coated or raw cast iron — they're designed for vehicles that occasionally get wet, not machines that operate in standing water and road salt brine continuously. A standard caliper on a broom may last one season. The Dacromet caliper will last 3–5x longer.

Do I need to buy brake pads separately?
No. This caliper ships loaded — the ceramic brake pads are already installed. It's ready to bolt on out of the box.

Should I replace both front calipers at the same time?
If one caliper has failed from corrosion, the other is likely in similar condition. Replacing both ensures even braking and prevents a pull to one side. However, if only one caliper is failed and the other is still in good working condition (piston retracts freely, no leaks, no corrosion), you can replace just the failed one.
